Tin can making machine production line
Product Name:Square Metal Tin Can Body Making Machine Production Line

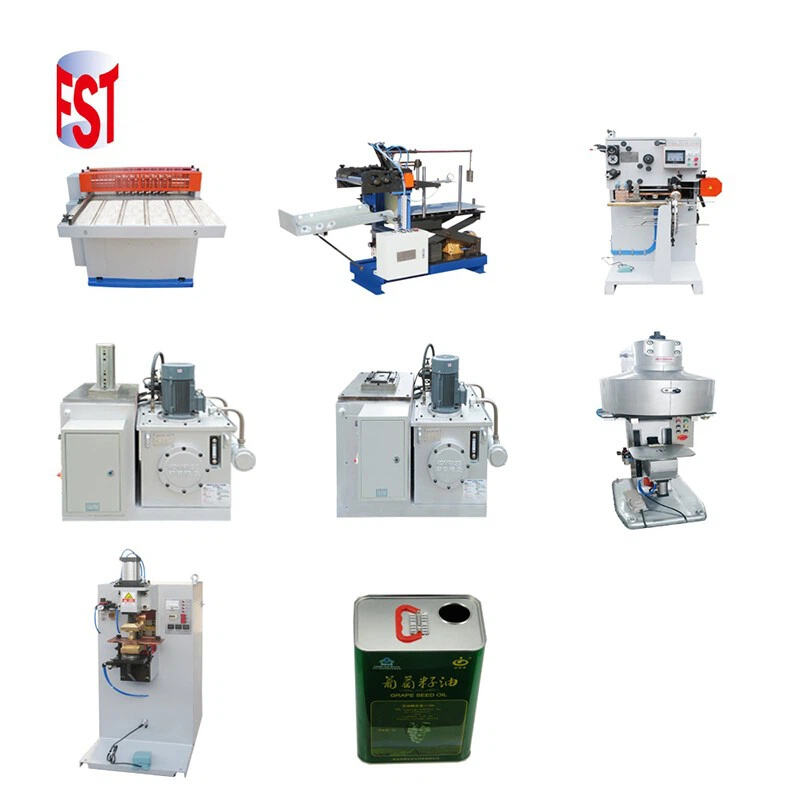

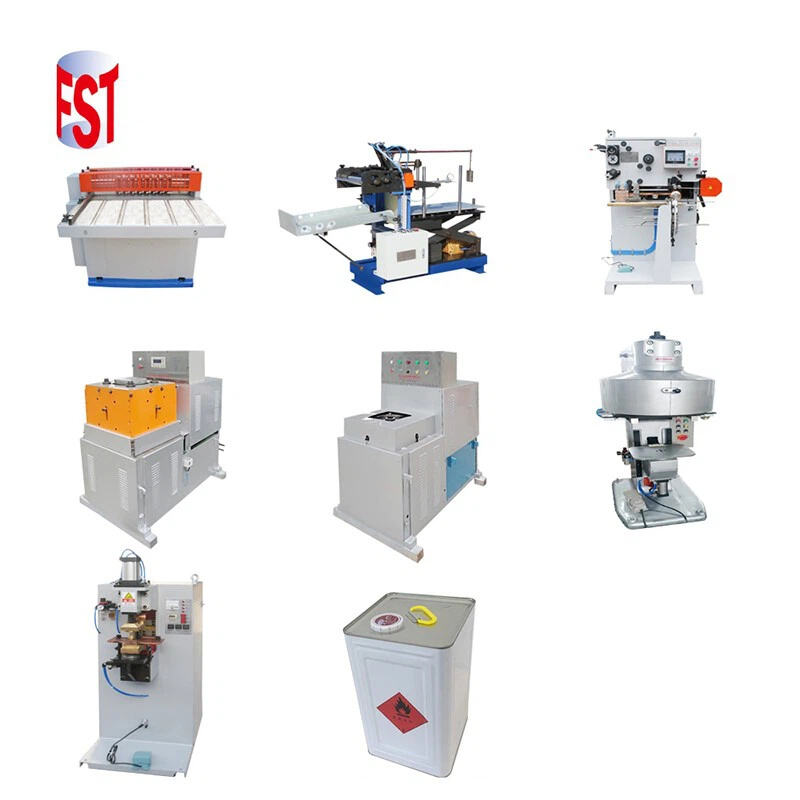

We provide a complete range of machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.

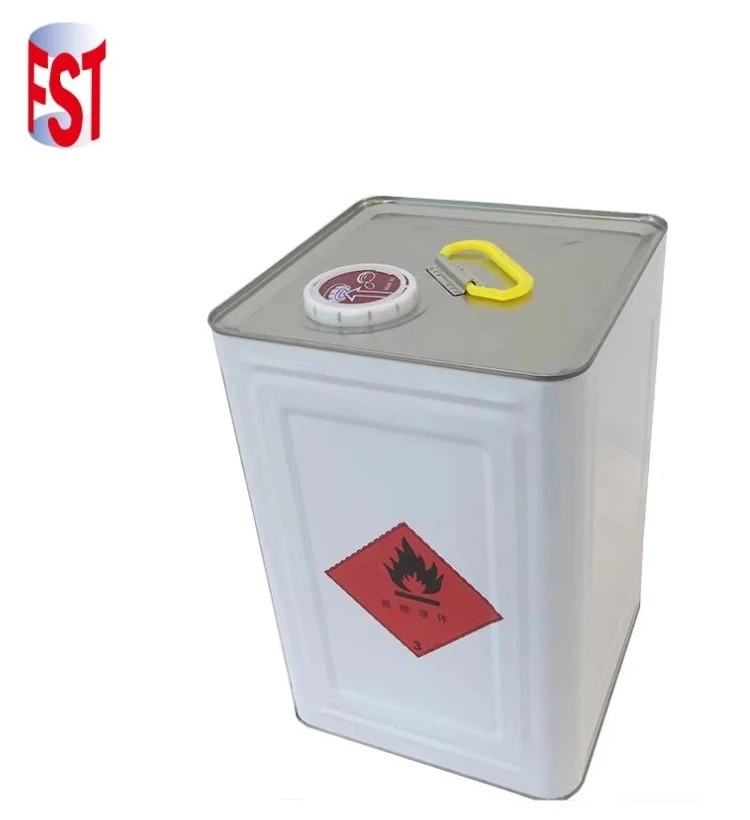

The follow is 18~20liter full automatic square can production line with productivity of 20cans/min
- Overview
- Advantages
- Specifications
- Applications
- Recommended Products
Overview
The tin can making machine production line is a highly automated production equipment, integrating advanced machinery, electrical and computer technologies. It processes metal sheets through preparation, cleaning, cutting, forming, welding, inspection, and packaging to ensure each can meets strict quality standards. This line boosts production efficiency and significantly reduces labor costs and error rates, essential in modern manufacturing.
Advantages
High Efficiency Production Capacity
The tin can making machine production line is renowned for its outstanding production efficiency. Through highly automated operational processes, from metal sheet preparation and cleaning to cutting, forming, welding, inspection, and packaging, each step is controlled by precision machinery and computer programs. This integrated system significantly increases production speed, capable of producing thousands of cans per hour, meeting large-scale production demands.
Precise Quality Control
This production line employs advanced detection technology to ensure every can meets strict quality standards. Each step in the production process is closely monitored, significantly reducing error rates. For example, high-precision sensors monitor welding temperature and pressure in real time, ensuring uniform and secure welds, preventing issues like leakage.
Reduced Labor Costs
Due to its highly automated nature, the tin can making machine production line greatly reduces reliance on manual operations. This not only lowers labor costs but also minimizes errors and safety hazards caused by human involvement. According to statistics, using this production line can save up to 50% of labor costs.
Environmentally Friendly and Energy Efficient
Modern tin can making machine production lines focus on environmental friendliness and energy efficiency. By optimizing process flows and adopting energy-saving equipment, the line's energy consumption is significantly reduced. For instance, new welding technologies not only enhance welding efficiency but also cut down on energy use and emissions, aligning with green manufacturing principles.
Flexibility and Adaptability
This production line offers a high degree of flexibility and adaptability, capable of producing various specifications and uses of metal cans. Whether for food, beverages, or other consumer goods, simply adjusting parameters allows for quick switching between different types and sizes of cans. This versatility gives it broad applicability and competitiveness in the market.
Specifications

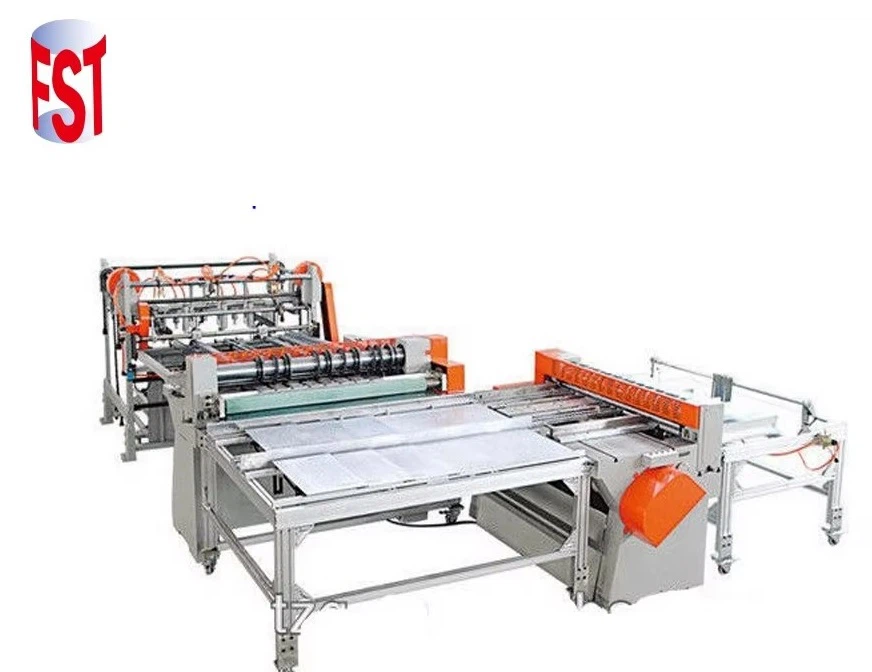

Automatic Slitter
The complete production line is suitable for the company's requirements, and the speed and efficiency are very high.
Automatic Slitter is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.
| Model | GT-A10 |
| Max Thickness | 0.4mm |
| Max Width | 1200x1200mm |
| Min Width | 600x600mm |
| Power | 15kw |
| First Strip | 5 pieces |
| Second Strip | 15 pieces |
| Net Weight | 2000kg |
| Dimension | 2500x2000x 1200mm |

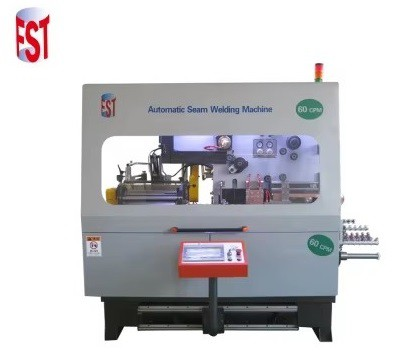

Automatic Canbody Welder
Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.
| Model | FBZ-A-30 |
| Input Power | 3N380V/50HZ 46KVA |
| Welding Speed | 5~1 5m/min |
| Productivity | 30cans/min |
| Diameter Range | Φ210~Φ290mm |
| Height Range | 420mm |
| Welding Thickness | 0.28~0.42mm |
| Overlap | 0.6~0.8mm . |
| Net Weight | 2500kg |
| Dimension | 2200x2700x2000mm |

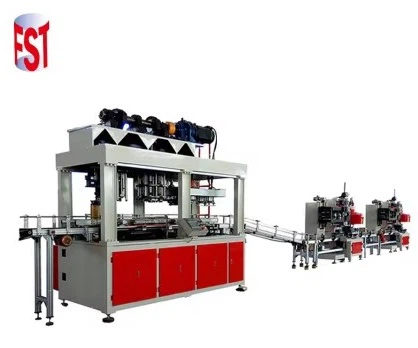

Automatic Body Formers
Automatic Body Formers is use to given the can body into final shape and prepared for the end seaming process.it's combine all the necessary functions in a single machine:shape,embossing, flanging,and seaming the bottom or top end.
| Model | FST-18 |
| Diagonal Range | Φ300~Φ 320mm |
| Height Range | 420mm |
| Capacity | 20cans/min |
| Thickness | 0.28~0.32mm |
| Air Pressure | 0.3~0.5Mpa |
| Power | 30kw |
| Net Weight | 5200kg |
| Dimension | 6500x 1200x2300mm |

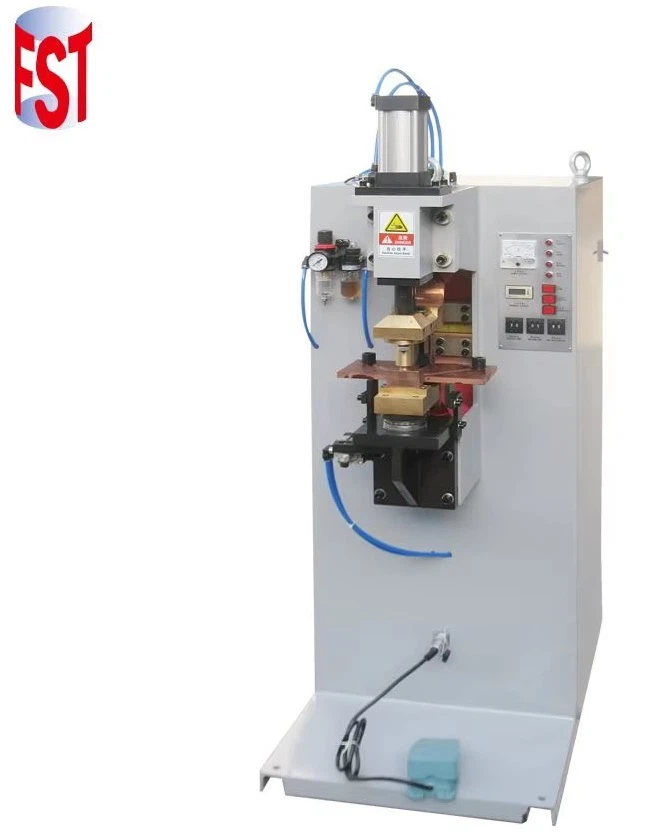

Handle Welding
Handle Welding is use to welding the handle on the top lid
| Model | DNZD60B |
| Input Power | 3N380V/50HZ 60KVA |
| Productivity | 20~25cans/min |
| Diameter Range | Φ220~Φ300mm |
| Air Compressor | 900L /min 0. 6MPa |
| Net Weight | 600kg |
| Dimension | 3300x1500x1 600mm |
Applications
Food Industry Application
The tin can making machine production line is widely used in the food industry to ensure the hygiene and safety of juices, beverages, and canned foods. Precision cleaning and disinfection processes remove impurities and bacteria, while advanced welding technology and quality detection systems ensure good sealing of cans, preventing leaks and contamination.
Beverage Industry Application
In the beverage industry, this production line is also crucial. From carbonated drinks to functional beverages, all require high-quality packaging to maintain freshness and taste. The production line can produce metal cans of various specifications and shapes to meet different needs.
Chemical Industry Application
The tin can making machine production line plays an important role in the chemical industry as well. Many chemicals need special packaging materials to ensure stability and safety. Metal cans, due to their corrosion resistance and high strength, become an ideal choice. This production line can produce metal cans that meet strict chemical industry standards, ensuring the safe transportation and storage of chemicals. Special coating technology improves the corrosion resistance of metal cans, extending the shelf life of chemicals.
Pharmaceutical Industry Application
In the pharmaceutical industry, this production line shows unique advantages. Drug packaging requires high hygienic standards and good protective performance. Metal cans, as reliable packaging materials, prevent drugs from being contaminated by external environments. The production line produces drug packaging cans that meet GMP standards, ensuring the safety and effectiveness of drugs.
