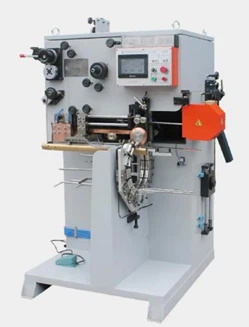

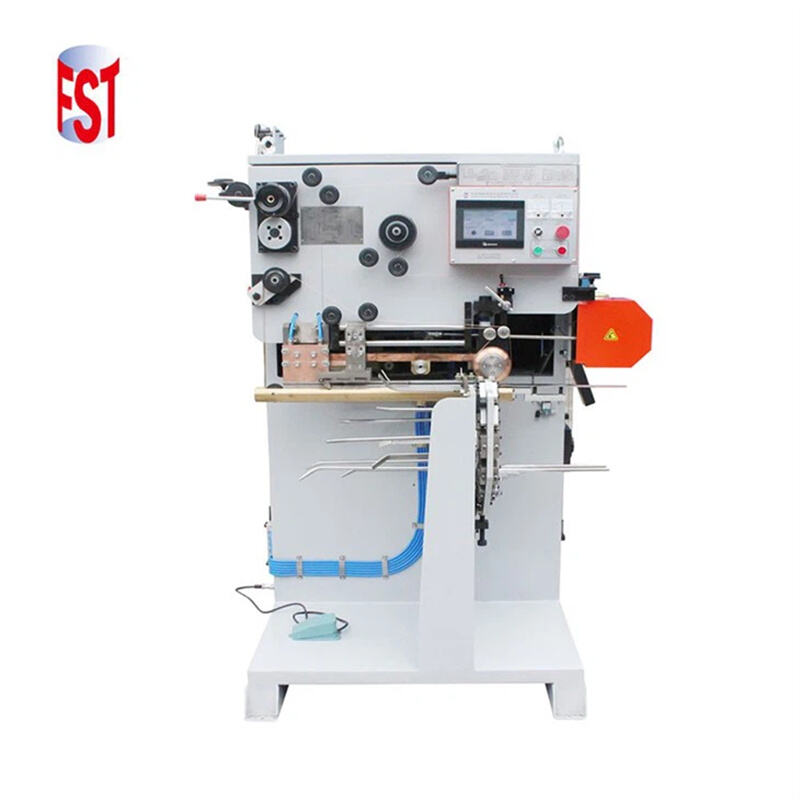

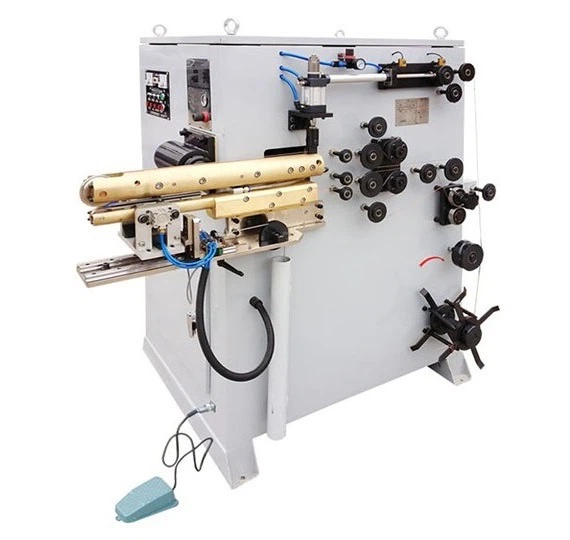

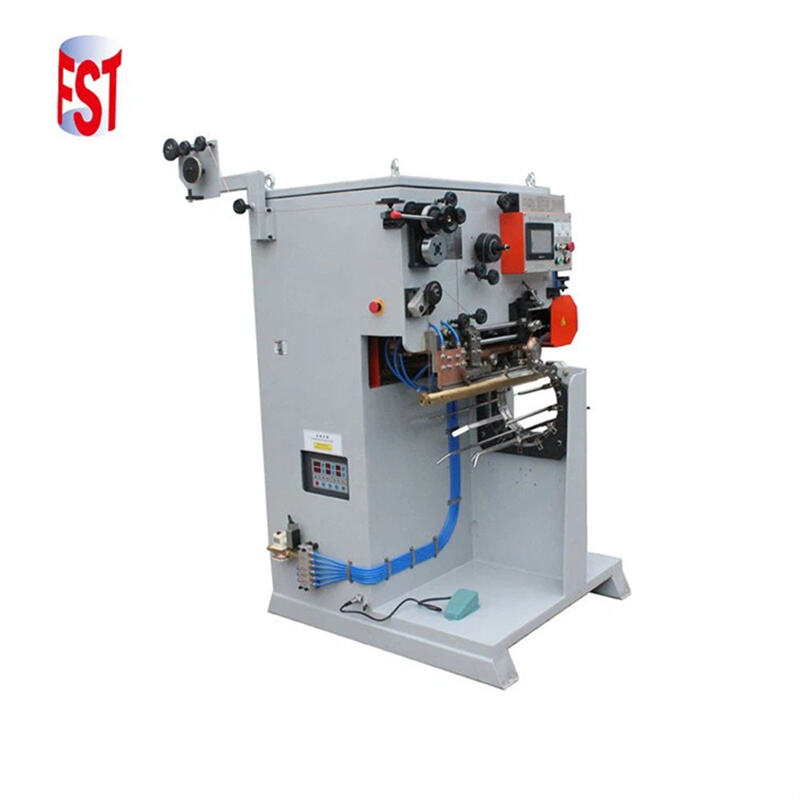

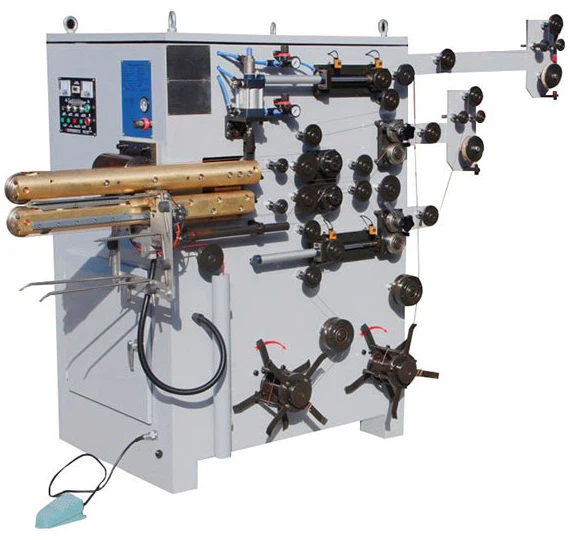

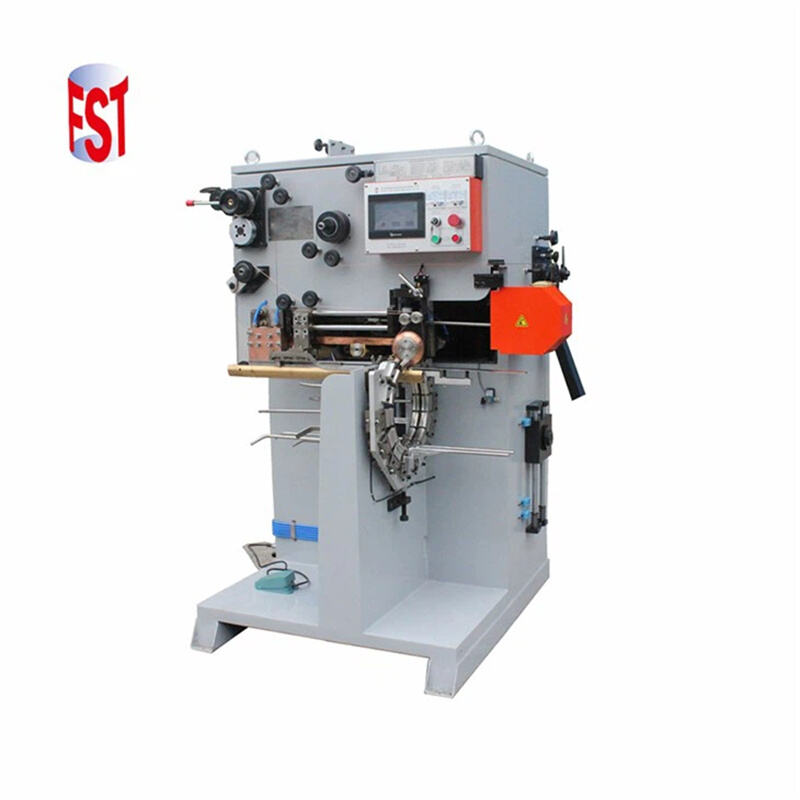

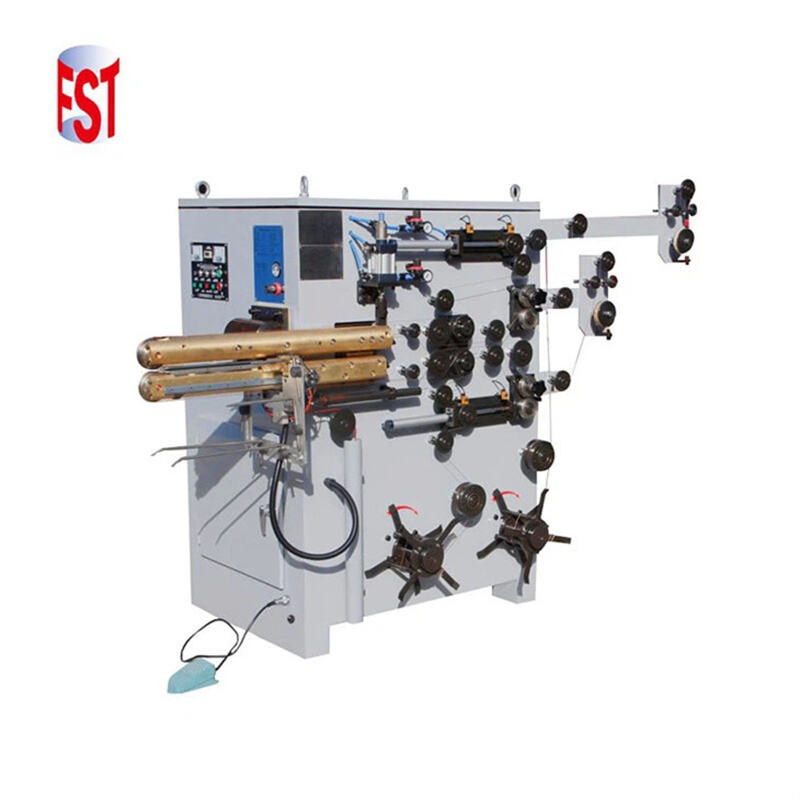

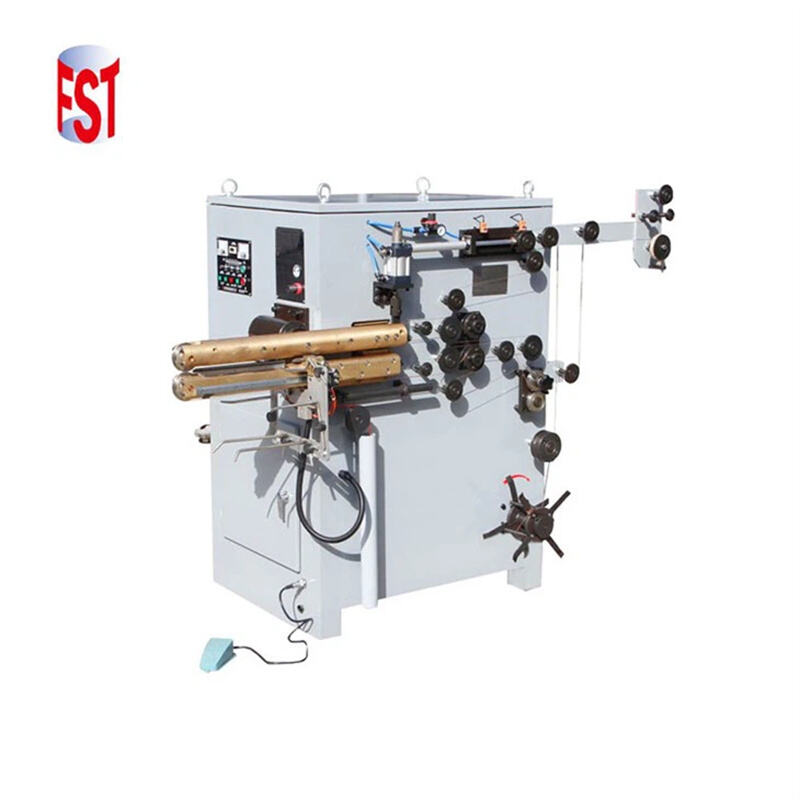

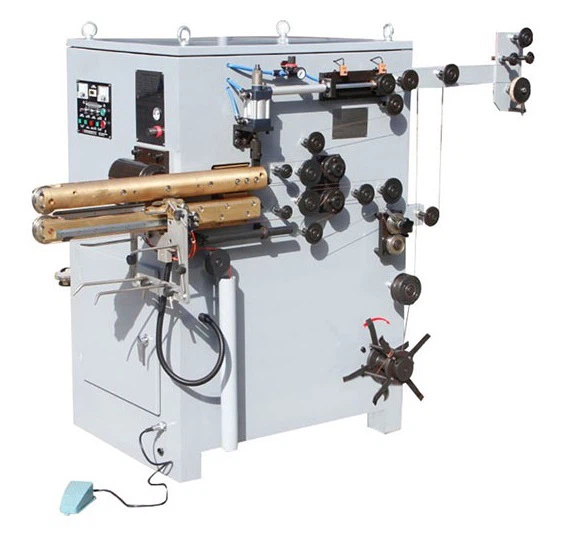

Semi Automatic Can Seam Welding Machine
Semi Automatic Seam Welding Machine ，Cheap price, simple operation, easy for workers to operate，Delivery cycle is fast, after-sales worry free
- Overview
- Advantages
- Specifications
- Features
- Recommended Products
Overview
The Semi Automatic Can Seam Welding Machine is an advanced welding device designed to enhance production efficiency and weld quality. Featuring a linear welding system, it automates straight seam welding suitable for projects of any scale. Its semi-automatic operation ensures ease of use while maintaining high weld consistency across the entire material length. This machine delivers exceptional performance and reliable welding results in both small-scale production lines and large-scale industrial applications.
Advantages
Enhances Worker Safety
The Semi Automatic Can Seam Welding Machine significantly reduces the risk of workers directly exposing themselves to high temperatures and hazardous environments through automated welding processes. The machine's precise control and stable operation minimize human errors, ensuring a safe working environment. This not only protects worker health but also lowers the likelihood of work-related accidents.
Maintains High-Quality Welding Output-Integrity and Repetitiveness
The Semi Automatic Can Seam Welding Machine features an advanced linear welding system that achieves high-precision straight seams. Its semi-automatic function ensures uniform consistency across the entire material length, delivering excellent performance and reliable welding results for both small-scale production lines and large-scale industrial applications. This high consistency and repetitiveness enhance product quality and market competitiveness.
Increases Overall Product Output
Thanks to its efficiency and stability, the Semi Automatic Can Seam Welding Machine significantly boosts overall production output. The machine's rapid response and continuous operation shorten production cycles, increasing the volume of products produced per unit time. This is crucial for meeting market demand and improving production efficiency.
Reduces Scrap Production
The Semi Automatic Can Seam Welding Machine helps reduce scrap generation through precise control and high-quality welding output. By optimizing welding parameters and processes, the machine ensures the integrity and quality of welds, thereby lowering the defect rate due to poor welding. This saves on raw material costs and lessens environmental impact.
More Cost-Effective than Robotic Welding
Although robotic welding technology offers advantages in automation and flexibility, the Semi Automatic Can Seam Welding Machine stands out for its cost-effectiveness. It has relatively low acquisition and maintenance costs and is easy to operate and maintain. For many small and medium-sized enterprises, it represents a practical choice that ensures welding quality while reducing production costs.
Specifications
| Model | FB2000-A | FB2000-B |
| Input Power | 3N380V/50HZ 15KVA ( 40KVA ) | 3N380V/50HZ 15KVA |
| Welding Speed | ≤12m/min | |
| Productivity | 15~ 50cans/min | |
| Diameter Range | Φ65~Φ290mm | Φ52~Φ180mm |
| Height Range | 70~400mm ( 500mm ) | 70~400mm |
| Welding Thickness | 0.18-0.4mm(0.5mm) | 0.18-0.4mm |
| Overlap | 0.6~1.0mm | 0.4~0.9mm |
| Net Weight | 1350kg | |
| Dimension | 1350x1450x2000mm | |
| Model | FN2000-A | FN2000-B | FN2000-C |
| Input Power | 3N380V/50HZ 10KVA | 3N380V/50HZ 16KVA | |
| Welding Speed | 5~ 10m/min | ||
| Productivity | 10~20cans/min | ||
| Diameter Range | Φ105~Φ300mm | Φ52(Φ75)~Φ176mm | Φ105~Φ300mm |
| Height Range | ≤400mm(500mm) | ≤250mm | ≤400mm(500mm) |
| Welding Thickness | 0.18-0.4mm | 0.18-0.4mm(0.5mm) | |
| Overlap | 3~4mm | 2~3mm | 3~4mm |
| Welding Material | Tinplate Cold Roller Sheet TinplateCold rolled plate | Tinplate Galvanized Cold Roller Sheet TinplateGalvanized sheetCold rolled plate | |
| Net Weight | 1000kg | ||
| Dimension | 2200x1 100x1600mm | ||
| Model | FN2000-A | FN2000-B | FN2000-C | FN2000-D |
| Input Power | 3N 380V/50Hz 10KVA | 3N 380V/50Hz 16KVA | 3N 380V/50Hz 46KVA/63KVA | |
| Welding Speed | 5~ 10m/min | 2~6m/min | ||
| Productivity | 10~ 20cans/min | |||
| Diameter Range | Φ105~Φ290mm | Φ52~Φ180mm | Φ105~Φ290mm | Φ72(100)~Φ290mm |
| Height | 420mm(500mm) | ≤250mm | 420mm(500mm) | ≤1000mm |
| Welding Thickness | 0.28~0.42mm | 0.18~0.4mm | 0.28~0.5mm | 0.3~ 1.0mm |
| Overlap | 3~ 4mm | 2~3mm | 3~4mm | 6~8mm |
| Copper Wire | Φ1.5 T2 | |||
| Welding Material | Tinplate/Galvanized/Cold Roller Sheet | |||
| Net Weight | 1000kg | 1200kg | ||
| Dimension | 2200x1 100x1 600mm | 2500x1 100x1 600mm | ||
Features
· The equipment is easy to repair and adjust.can welding many size of cans.
· Mitsubishi PLC and frequency conversion speed governor control system.
· Welding Current Microcomputer contol,with the function of genty rise and fall at front and back end of current.
· Welding psitining device with upper and lower litprevent loose function.
· Welding pressure. wire storage pressure are have a table show, intuitive and comvenient to adust.
· Small can use tiles i9. will non-deformation after weldingbetter ftor next procedure.
· Galvanized material uso double copper wire ,the copper wire with zinc bayer will not reusable. ensure the welding quality, according to the different material,also can use single copper wire welding.
