Automatic Shearing Machine

Overview

Detailed list of standard configurations

Hoisting frame	1 unit
Front table component	1 set
Slitting fuselage	1 unit
Back table component	1 set
Shear fuselage	1 unit
1.25 m conveyor belt	1 article
Small drop rack	1 unit
Sharpener	1 unit



Main technical parameters of slitting

Feed speed of the feeder	0-40 sheets/min
Iron cutting speed	0～59m/min
Total installed power	8.4kw
Clipping motor	Y132S-6-B5 3kw
The feeder lifts the motor	YEJ100L1-4 2.2kw
Conveyor motor	380V CH-28 0.75kw
Sharpener motor	380V 0.25kw
Feed roller motor	380V RV-50 2.2kw
The maximum load allowed on the feeder table	2500 kg
Machine dimensions (L × W × H)	8110X1900X1500mm
Machine weight	5000kg
Note: Slitting 7 pairs of tungsten steel knives



Technical Parameter

Model name	longitudinal-transverse shear strength Platform lower height
Feed speed of the feeder	0-45 sheets/min (variable frequency speed regulation)
Iron cutting speed (feed chain speed	0～59m/min
Application range of shear iron sheet	60～1200mm
Shear the thickness of the iron sheet	0.15～0.5mm
The minimum width of the cut sheet	52mm (if<52, the tool holder needs to be replaced)
Number of the first (slitting) cut	5 pairs of tungsten steel knives
The number of rubber rings installed in the first (slitting)	5 for iron core rubber roller
Number of second (slitting) tool loading	5 pairs of tungsten steel knives
The number of rubber rings installed in the first (slitting)	5 pairs of iron core rubber press wheels
Shear tolerance	0.05± 0.02mm
electric appliance	chint
PLC	Wuxi Xinjie
DOUBLE SHEET CONTROL	Hangzhou Skill
Sharpening machine weight	35kg
Knife sharpener	250W
Total installed power	11KW
The maximum load allowed on the feeder table	2000 kg
Machine dimensions (L × W × H)	6175×4559×1900mm
Machine weight	6150kg

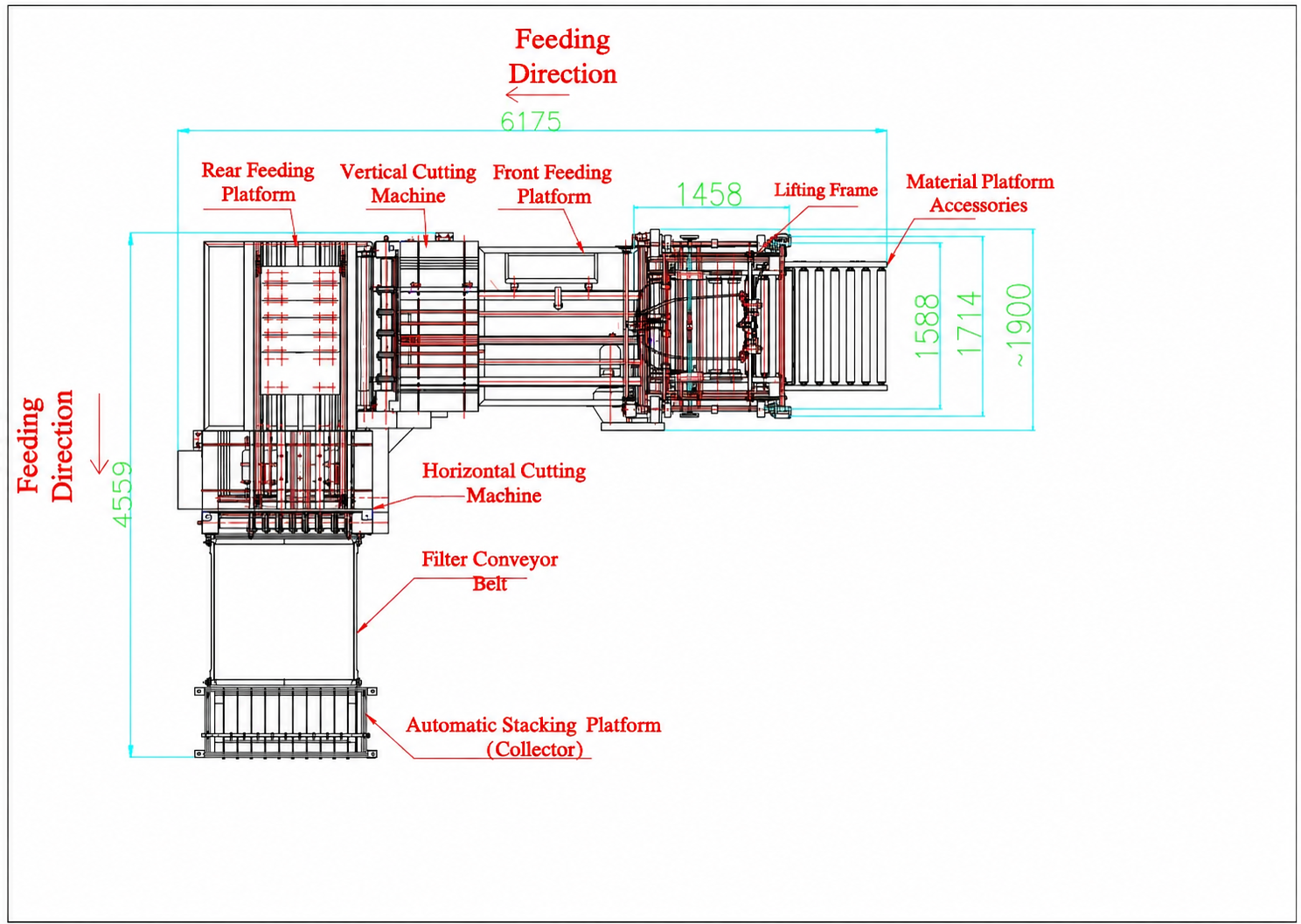

Layout
