Overview

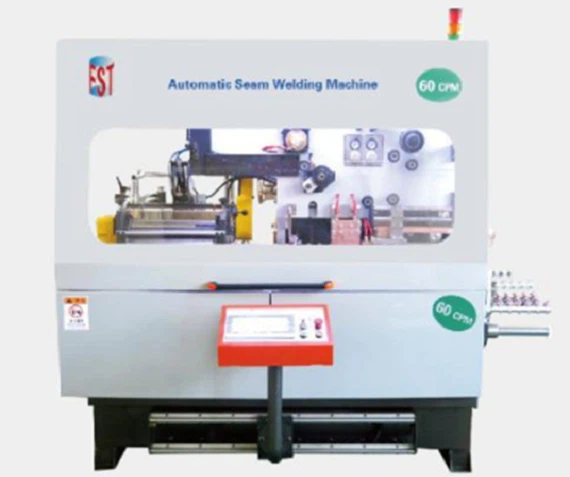

Advantages
· Panasonic's programmable control and servo drive system.
· Rounder with automatic lubrication,double sheet identification and operating system integration.
· Precision control front & back current and copper wire spacing.
· Water-cooled welding transformer,can stable running for a long-time.
· Can Transfer system and gauge tooling use ceramics roller or bearing.

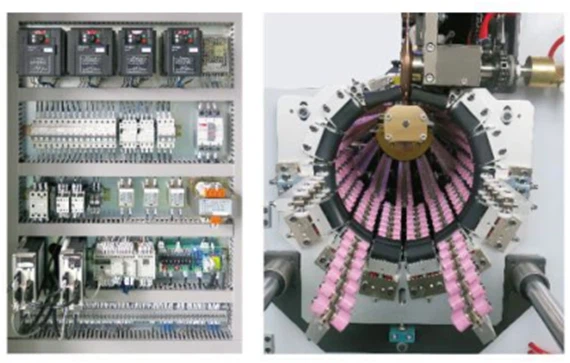

· Independent electrical cabinet structure,fully compliant with the EMC specification.
· Highly-automatized,worker only input can size and speed.
· Equipped with remote maintenance to provide more efficient service.
· High efficiency, cost saving, fast delivery, no worries after sale.
· The machine is of good quality and the accessories are durable and will stand the test of time.
Specifications

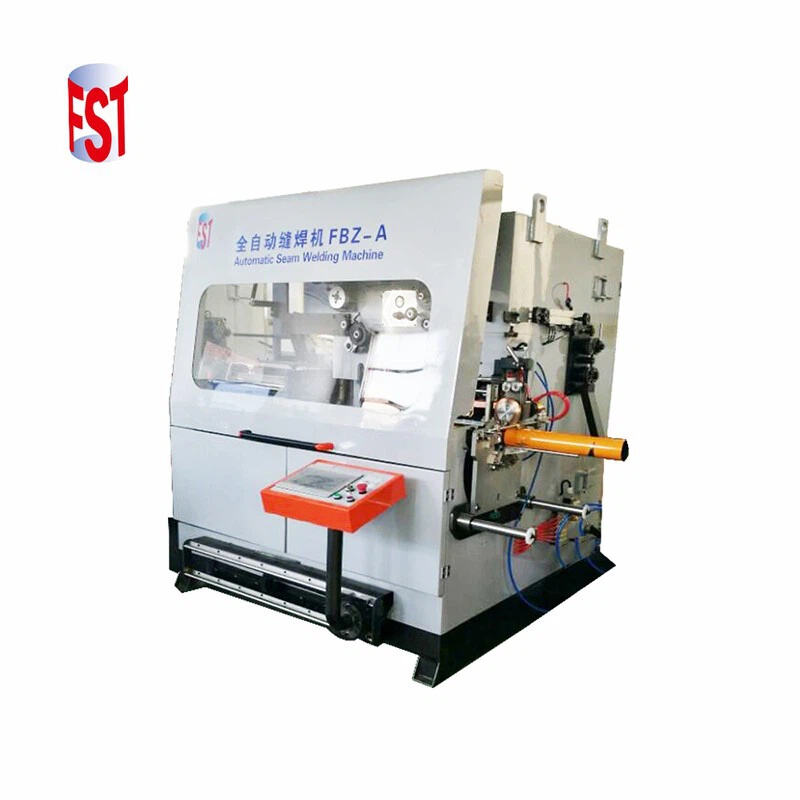

| Item | FBZ-A-60 | FBZ-A-30 | FBZ-B-60 |
| Input Power | 3N380V/50HZ 100KVA | 3N380V/50HZ 63KVA / 46KVA | 3N 380V/50HZ 40KVA |
| Welding Speed | 6~25m/min | 5~ 15m/min | 5~ 15m/min |
| Productivity | 20~60cans/min | 10~30cans/min | 10~ 60cans/min |
| Diameter Range | Φ220~Φ290mm | Φ220~Φ290mm | Φ120~Φ180mm |
| Height Range | 420mm(500mm) | 420mm(500mm) | 400mm |
| Welding Thickness | 0.28-0.42mm | 0.28-0.42mm | 0.2~0.38mm |
| Overlap | 0.6~0.8mm | 0.6~1mm | 0.6~0.8mm |
| Net Weight | 3000kg | 2500kg | 2500kg |
| Dimension | 2300x2700x2000mm | 2200x2700x2000mm | 2200x2700x2000mm |
